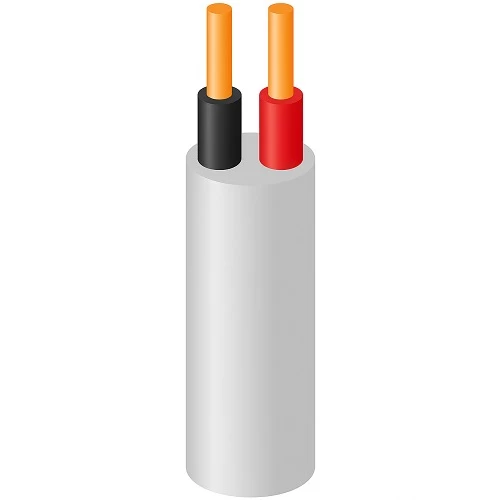

Stranded Copper Cable Two Core 6 sq mm, 300/500V, Solid , PVC 70°C Insulation, Gray Color, 100 meter/Drum | Saudi Cable Company

Solid copper electric cable (CU/PVC/PVC), 2 core, 6 sq mm, 300/500V, with PVC 70°C insulation and environmentally resistant gray sheath, 100 meter drum, suitable for distribution boards and construction projects, Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 6mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 12.4 mm
• Weight: 260 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABH2-07H
