Stranded Copper Cable Two Core 4 sq mm with Earth, 300/500V, PVC 85°C Insulation, Black Sheath, 100 meter | Saudi Company

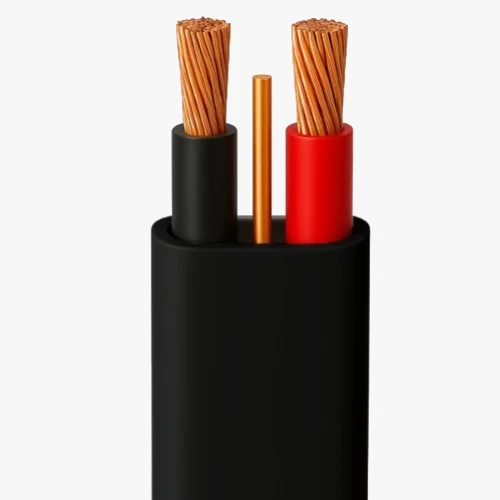

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), 4mm, 85°C insulation, black sheath, 100m length, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC). The black sheath provides superior protection against environmental factors.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 4mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 1×1.38 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.0 mm
• Overall Diameter: 13.0×7.2mm
• Weight: 166 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGG2-06H
