Stranded Copper Cable Two Core 2.5mm2, 300/500 Rated Voltage, Solid Flat, PVC Insulated and Sheathed | Riyadh Cables
2 core solid electrical copper cable (CU/PVC/PVC), 2.5 mm2 cross-sectional area, 300/500V, according to the British standard, ensuring its quality and performance, insulated and sheathed with high quality PVC compound (polyvinyl chloride), insulation color is brown and blue, produced by Riyadh Cables Company.
- Conductor: Copper
- Conductor Shape: Solid as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 2.5 mm
- Number of Wires: 1
- Insulation Thickness: 0.8 mm
- Sheath Thickness: 1 mm
- Overall Diameter or Dimensions: Lower Limit 5.2 x 8.4 mm / Upper Limit 6.2 x 9.8 mm
- Max DC Conductor Resistance at 20°C: 7.41 ohm/km
- Weight: 106 kg/km
- Insulation Color: (Brown, Blue)
- Standard: BS 6004
Contact Us
Related products

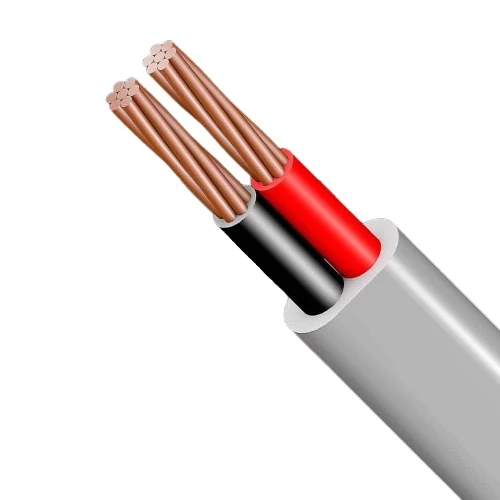

Stranded Copper Cable Two Core 2.5mm2, 300/500 Rated Voltage, Solid Flat, PVC Insulated and Sheathed | Riyadh Cables
