Stranded Copper Cable Two Core 2.5mm Flat, Size, 300/500V, PVC Insulated and Sheathed | Alfanar

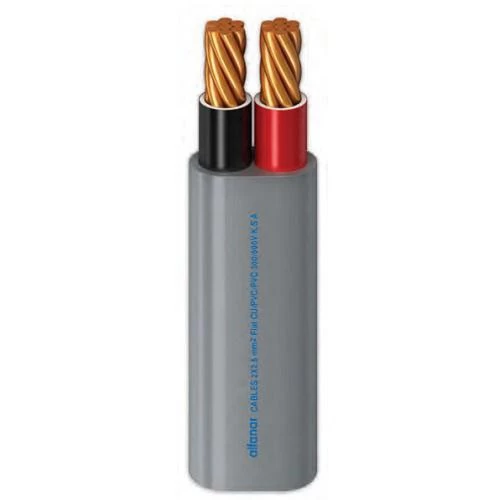

Stranded copper flat electric cable 2.5 mm2 size two core, 300/500V, PVC insulated and sheathed, the outer jacket also provides protection for the cable from corrosion and external factors, insulation color (red, black), produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.67 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 1 mm
• Approx. Overall Diameter: 5.6 × 9.2 mm
• Weight: 115 kg/km
• Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
• Insulation Color: (Red, Black)
• Standard: BS 6004
