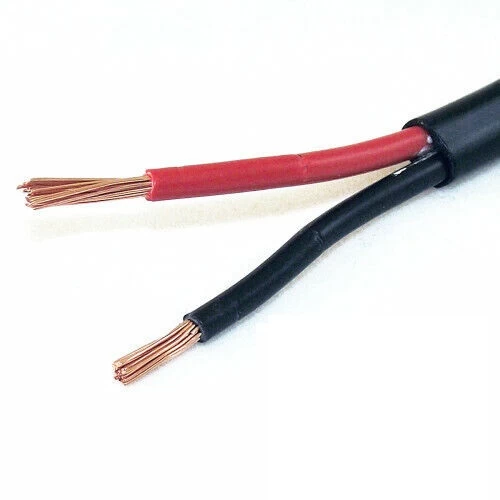

Stranded Copper Cable Two Core 2.5mm, 300/500V, PVC Insulated and Sheathed | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), 2 core, 2.5mm2 cross-sectional area, low voltage 300/500V, From Nohascom Company, it is characterized by high flexibility, which makes it easy to install in narrow spaces and curves, and to fix it in walls or channels, black/red.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.67 mm
• Nominal Insulation Thickness: 0.8
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 10.5 mm
• Weight: 165 kg/k
• Insulation Color: (Red, Black)
• Standard: SASO IEC 60227-4
