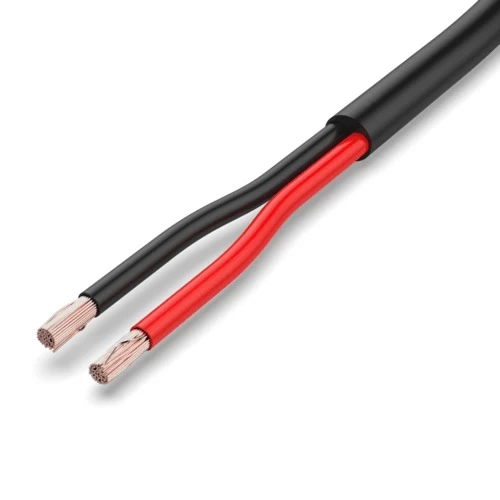

Stranded Copper Cable Two Core 2.5mm, 0.6/1kV, PVC 85°C Insulation, Black Color, 1000 meter | Saudi Cables Company

Unarmored stranded copper power cable (CU/PVC/PVC), two cores, 2.5mm², low voltage 0.6/1kV, Highly flexible during pulling and installation. Suitable for residential projects. Produced by Saudi Cables Company.

• Conductor: Stranded Copper
• Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 13.1 mm
• Weight: 240 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: CJH2-05A
