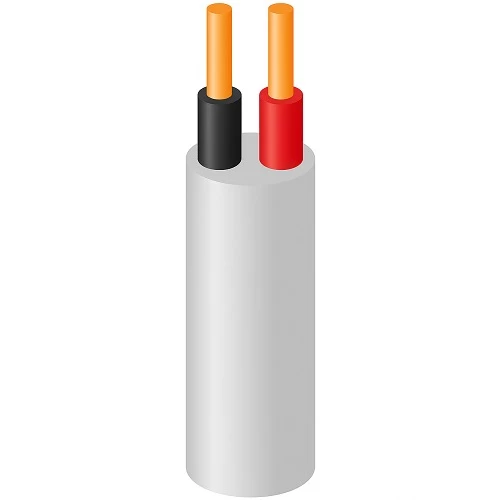

Stranded Copper Cable Two Core 2.5 sq mm, 300/500V, Solid , PVC 85°C Insulation, Gray Color, Length 100 meter | Saudi Cable Company

Solid copper 2 core cable CU/PVC/PVC, 2.5 sq mm cross-sectional area, gray outer sheath, PVC insulation rated up to 85°C, 100 meter length, for industrial and residential use. Produced by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 2.5mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 10.5 mm
• Weight: 150 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: AGH2-05H
