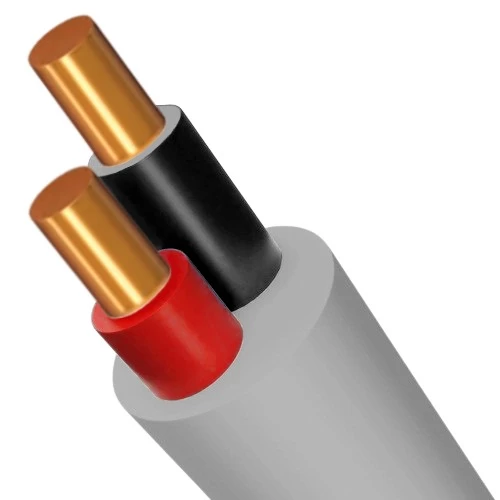

Stranded Copper Cable Two Core 10mm, 300/500V, Solid, Size Conductor, PVC Insulated, PVC Sheath | Riyadh Cables

2 core solid electrical copper cable (CU/PVC/PVC), 10 mm2 cross-sectional area, 300/500V, It is used to conduct electrical current in various domestic, commercial and industrial applications, insulation color is red and black, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Solid
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 10 mm
• Number of Wires: 1
• Approx Conductor Diameter: 3.57 mm
• Insulation Thickness: 1
• Sheath Thickness: 1.4 mm
• Overall Diameter: 16.5 mm
• Weight: 440 kg/km
• Max DC Conductor Resistance at 20°C: 1.83 ohm/km
• Standard Packing Length: 1000/2000 meter
• Insulation Color: (Red, Black)
• Outer Sheath Color: Gray
• Standards: IEC 60227, SSA 1450
