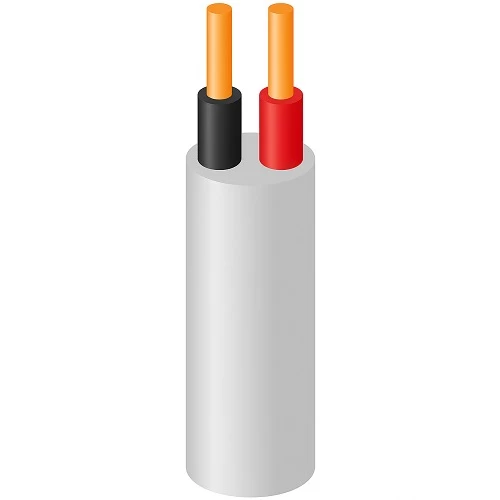

Stranded Copper Cable Two Core 1 sq mm, 300/500V, Solid, PVC 70°C Insulation, Gray Color, 100 meter | Saudi Cable Company

Solid copper electrical cable (CU/PVC/PVC), 2 core, 1 sq mm, low voltage 300/500V, with PVC 70°C insulation and weather-resistant gray sheath, 100 meter drum, ideal for safe indoor and outdoor wiring, Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 1mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.6 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 8.4 mm
• Weight: 88 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red & Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABH2-03H
