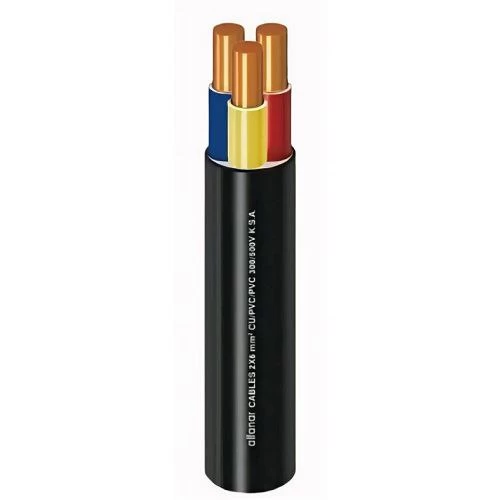

Stranded Copper Cable Three Core 4sq mm, 600/1000 Rated Voltage, Solid, PVC Insulated | Alfanar

Solid electrical copper cable three core (CU/PVC/PVC), 4 mm2 cross-sectional area, low voltage 600/1000V, insulation color (red & yellow & blue), available in a variety of sizes and colors with highest quality and best prices, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 1
• Wire Diameter: 2.25 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Overall Diameter: 12.8 mm
• Weight: 315 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red & Yellow & Blue)
• Standard: IEC 60502-1
