Stranded Copper Cable Three Core 4mm2, 300/500 volts, Solid, Size, PVC Insulation | Alfanar

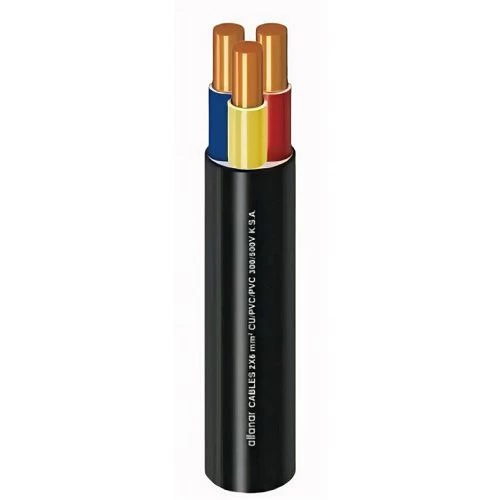

Solid copper electrical cable, three core , 4 mm2 size, 300/500 volts, insulated and sheathed with PVC compound (polyvinyl chloride), phase core colors (red, yellow, blue), produced by Alfanar Company according to the international standard IEC 60227-4, which ensures its quality and performance.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-U)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 1
• Wire Diameter: 2.25 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 11.5 mm
• Weight: 255 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red & Yellow & Blue)
• Standard: IEC 60227-4
