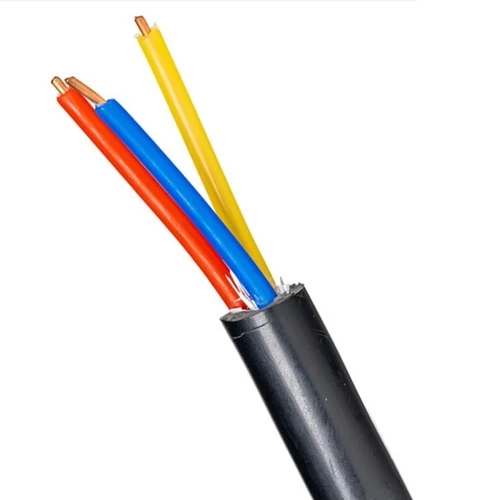

Stranded Copper Cable Three Core 10mm, 0.6/1kV, Solid, PVC 85°C Insulation, Black Color, 1000 meter Length | SCC

Unarmored solid copper power cable (CU/PVC/PVC), 3 cores, 10mm² size conductor, low voltage 0.6/1 kV, used for powering medium-sized electrical panels. Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 18.3 mm
• Weight: 600 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red & Yellow & Blue
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJH3-08A
