Stranded Copper Cable Three Core 10mm, 0.6/1kV, CU/PVC/PVC Size, Solid, 1000 meter | RESCAB

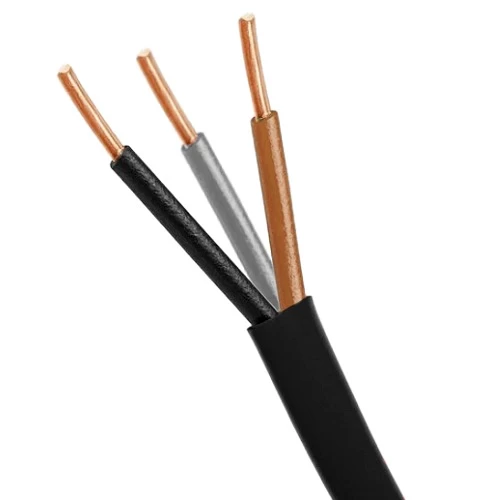

Solid copper power cable (CU/PVC/PVC), 3 phase, 10mm2 size conductor, 0.6/1kV, PVC layer provides strong electrical insulation that prevents electrical current from leaking out, reducing the risk of electrical shocks, produced by Red Sea Cables Company (RESCAB).
- Conductor: Solid Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of wires: 1
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 20 mm
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Weight: 600 kg/km
- Standard Length: 1000 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
