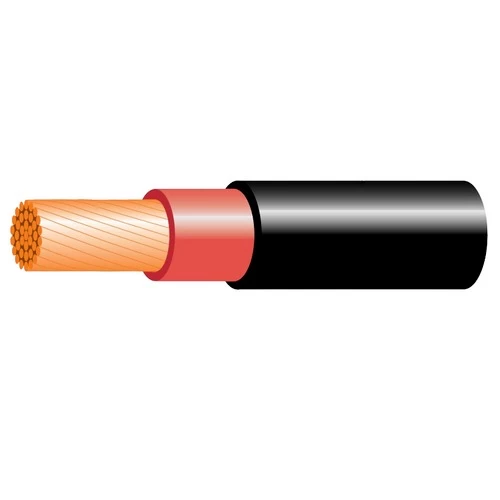

Stranded Copper Cable Single Core 6mm, 0.6/1kV, PVC 85°C Insulation, Red Color, 1000 meter/Drum | SCC

Unarmored stranded copper power cable (CU/PVC/PVC), single core, 6mm², 0.6/1 kV, PVC 85°C insulation, produced by Saudi Cables Company, engineered to withstand harsh environments while maintaining excellent conductivity.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size: 6 mm²
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 8.6 mm
• Weight: 115 kg/km
• Standard Length: 1000 meters
• Insulation Color: Red
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: CJB1-07A
