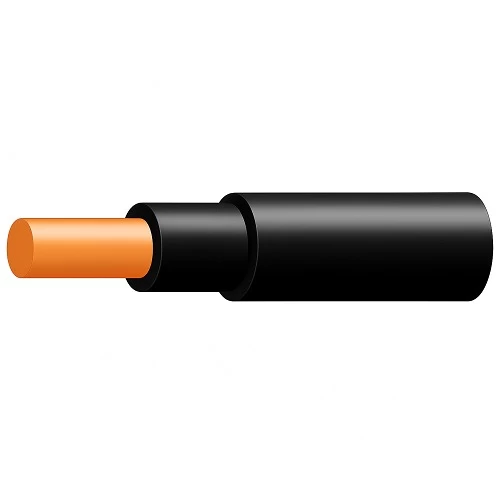

Stranded Copper Cable Single Core 6 sq mm, 0.6/1kV, Solid, PVC 85°C Insulated, Black Color, 2000 meter Packaging | SCC

Unarmored solid copper power cable (CU/PVC/PVC), single core, 6mm², low voltage 0.6/1kV, Cable sheath is corrosion-resistant and suitable for dry environments. Enhances protection against damage. Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 8.3 mm
• Weight: 110 kg/km
• Standard Length: 2000 meters
• Insulation Color: Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJB1-07A
