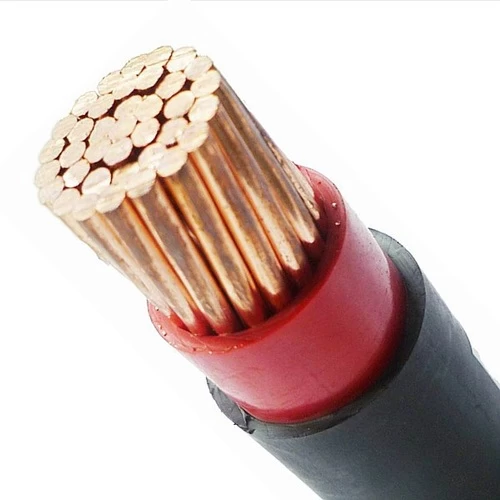

Stranded Copper Cable Single Core 6 mm, 0.6/1kV, PVC Insulation, Red Color, 2000 meter | RESCAB

Unarmored stranded copper power cable (CU/PVC/PVC), single core,6 mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC (polyvinyl chloride) layer forms excellent insulation and is highly resistant to water and moisture.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9 mm
• Max DC Conductor Resistance at 20°C: 3.08 ohm/km
• Weight: 125 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
