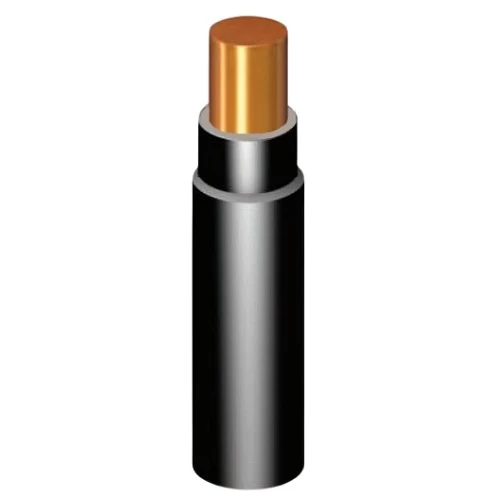

Stranded Copper Cable Single Core 6 mm, 0.6/1 kV, Riyadh Solid, PVC Insulated

Solid single core copper cable , PVC insulated, the outer jacket provides protection for the cable from corrosion and external factors, low voltage 600/1000V, it is used to conduct electrical current, cross-sectional area 1×6 mm2, black color, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Solid (re)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires: 1
• Approx Conductor Diameter: 2.76 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 8 mm
• Weight: 110 kg/km
• Cable Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
