Stranded Copper Cable Single Core 500mm, 0.6/1kV, PVC Insulated Blue Color, 500 m | RESCAB

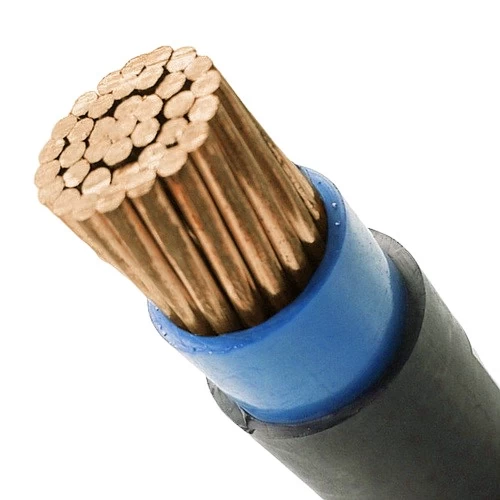

Stranded copper cable (CU/PVC/PVC), single core, 500mm2 size conductor, 0.6/1 kV, produced by Red Sea Cables (RESCAB) Company, outer sheath adds extra protection against impacts, abrasion, and corrosion, with excellent water and moisture resistance.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 500 mm2
• Number of wires: 61
• Nominal Insulation Thickness: 2.8 mm
• Nominal Sheath Thickness: 2.1 mm
• Approx Overall Diameter: 39 mm
• Max DC Conductor Resistance at 20°C: 0.0366 ohm/km
• Weight: 5270 kg/km
• Standard Length: 500 meters
• Phase Core Color: Blue
• Standard: BS 5467, 6346 Latest
