Stranded Copper Cable Single Core 4 sq mm, 0.6/1kV, Solid, PVC Insulated and Sheathed, Black Color, 2000 meter Length | Red Sea Cables

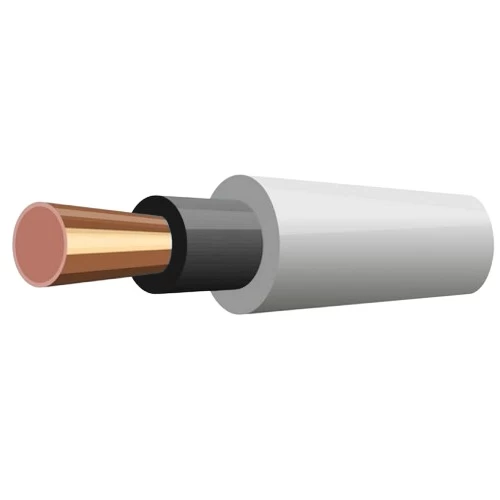

Solid Copper Cable (CU/PVC/PVC), 1 Core, 4 sq mm, 0.6/1kV, manufactured by RESCAB. The cable features a PVC insulation layer that protects against mechanical shocks, providing reliable performance in various environmental conditions.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 7 mm
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Weight: 90 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
