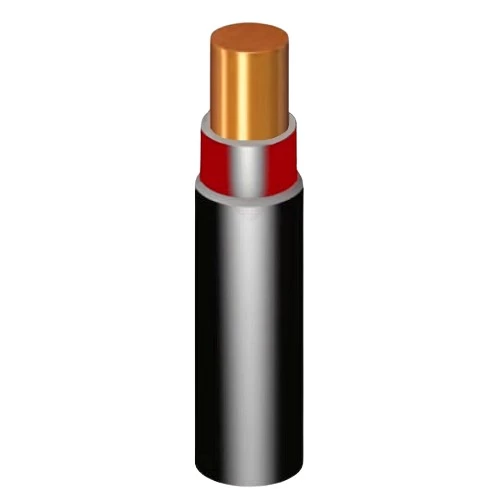

Stranded Copper Cable Single Core 4 mm2, 600/1000V, Solid , PVC Insulated | Riyadh Cables

Solid single core electrical copper cable (CU/PVC/PVC), red color, cross-sectional area 1×4 mm2, produced by Riyadh Cables Company, it is used to conduct electrical current in various domestic, commercial and industrial applications. such as lighting equipment, central air conditioners.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Solid (re)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 1
• Approx Conductor Diameter: 2.25 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 7 mm
• Weight: 90 kg/km
• Cable Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
