Stranded Copper Cable Single Core 35 sq mm, 0.6/1kV, PVC Insulated, Red Color, 1000 meter | RESCAB

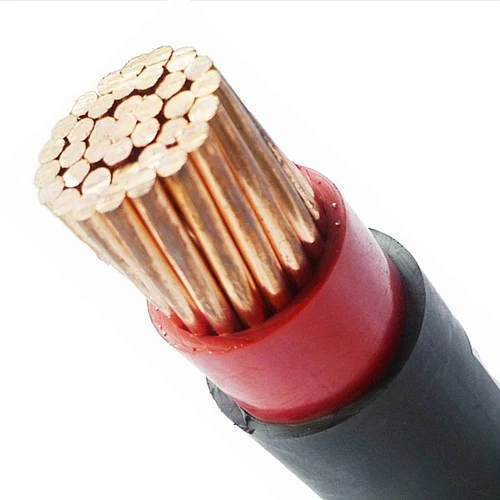

Unarmored stranded copper power cable (CU/PVC/PVC), single core, 35 mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 35  mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 13 mm
• Max DC Conductor Resistance at 20°C: 0.524 ohm/km
• Weight: 445 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
