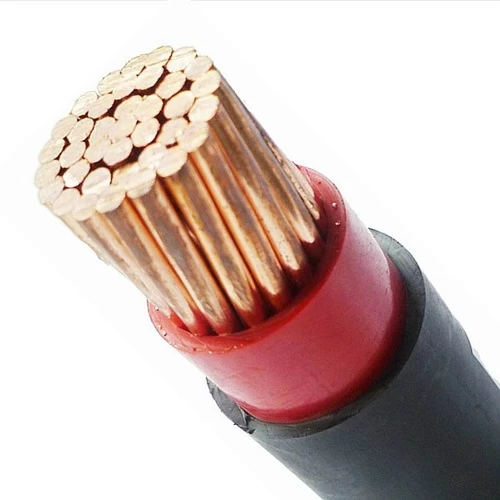

Stranded Copper Cable Single Core 2.5mm, 0.6/1kV, PVC Insulated, Red Color, 2000 meter | RESCAB

Unarmored stranded copper power cable (CU/PVC/PVC), single core, 2.5mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC layer forms excellent insulation to give it mechanical strength and provides extra protection for the cable against shocks that make it the ideal choice due to its excellent electrical mechanical properties.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 7  mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 75 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
