Stranded Copper Cable Single Core 2.5 sq mm, 600/1000V, Solid , PVC Insulated | Riyadh Cables

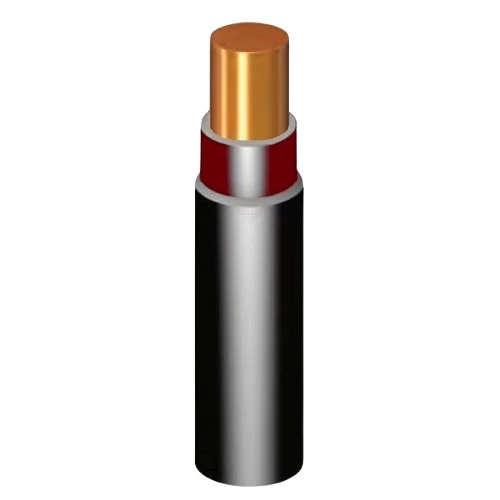

Solid single core electrical copper cable (CU/PVC/PVC), brown color, cross-sectional area 1×2.5 mm2, produced by Riyadh Cables Company, nominal sheath thickness 1.4 mm, insulated with two layers of high-quality PVC material, the first layer provides excellent electrical insulation, the outer jacket also provides protection for the cable from corrosion and external factors.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Solid (re)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 1
• Approx Conductor Diameter: 1.78 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 7 mm
• Weight: 65 kg/km
• Cable Length: 1000 meters
• Phase Core Color: Brown
• Standard: IEC 60502-1
