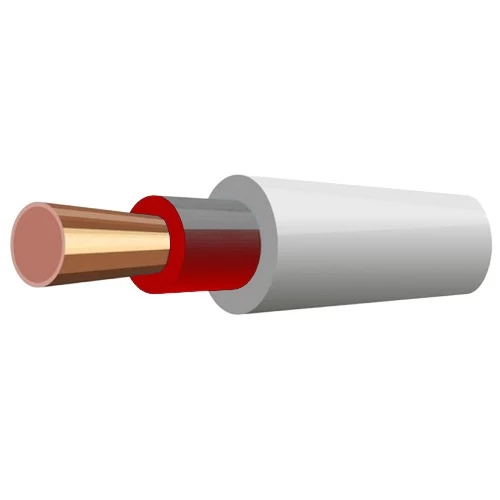

Stranded Copper Cable Single Core 2.5 mm, 0.6/1kV, Solid, PVC Insulated and Sheathed, Red Color, 2000 meter Length | RESCAB

Solid Copper Electric Cable (CU/PVC/PVC), 1 Core, 2.5 sq mm, Low Voltage 0.6/1kV, manufactured by Red Sea Cables. It is flexible and easy to install, with an insulating layer that prevents electrical leakage and provides extra protection in various operating conditions.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 7 mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 65 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
