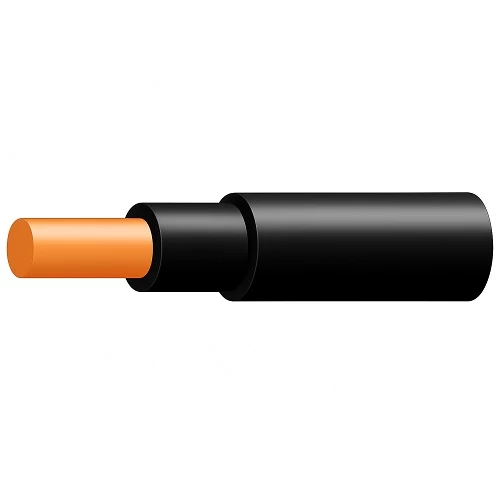

Stranded Copper Cable Single Core 2.5 mm, 0.6/1kV, Solid, PVC 70°C Insulation, Black Color, 2000 meter Length | SCC

Unarmored solid copper power cable (CU/PVC/PVC), single core, 2.5mm², low voltage 0.6/1kV, Lightweight and easy to distribute on site. Weather-resistant for long-lasting use. Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 6.8 mm
• Weight: 62 kg/km
• Standard Length: 2000 meters
• Insulation Color: Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJB1-05A
