Stranded Copper Cable Single Core 185 mm, 0.6/1kV, PVC Insulation, Red Color, Length 1000 meter | RESCAB

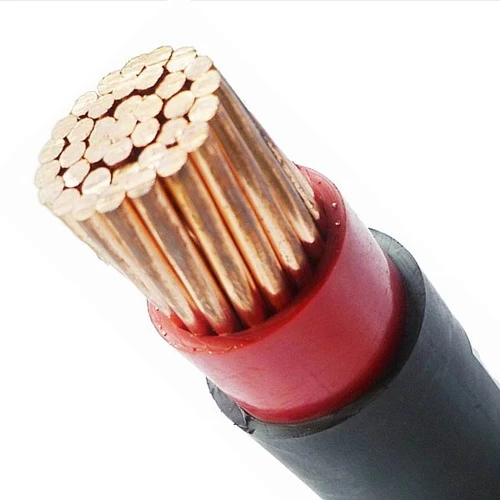

Unarmored stranded copper power cable (CU/PVC/PVC), single core,185mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC cables are a widely used and effective choice for power transmission and available in a variety of sizes.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 185 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 2.0 mm
• Nominal Sheath Thickness: 1.7 mm
• Approx Overall Diameter: 25 mm
• Max DC Conductor Resistance at 20°C: 0.0991 ohm/km
• Weight: 2025 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
