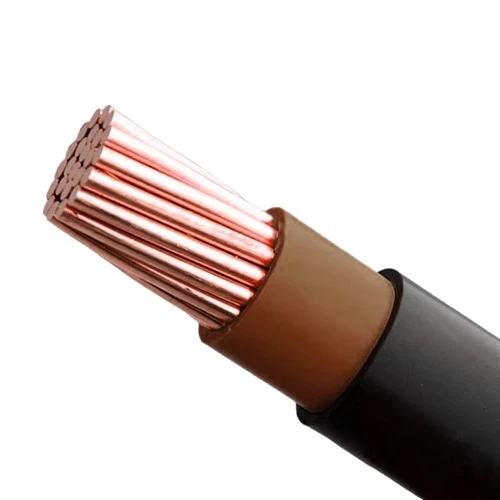

Stranded Copper Cable Single Core 16mm, 0.6/1kV, PVC Insulated and Sheathed, Brown Color, Length 2000 meter | BAHRA

Unarmored stranded copper power cable (CU/PVC/PVC), 1C, 16mm2 size conductor, produced by BAHRA Cables company according to British standard (BS 5467), the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9.9 mm
• Weight: 226 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Brown
• Standard: BS 5467 (A:2008)
