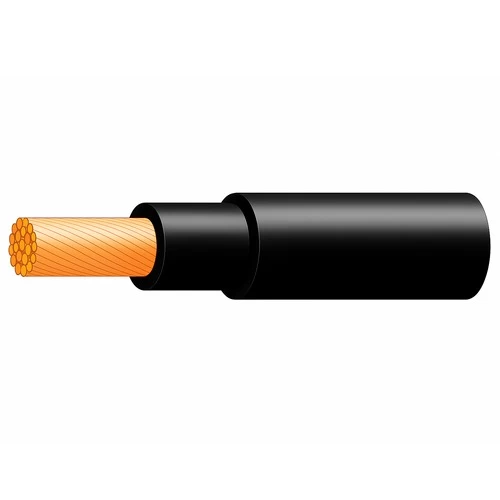

Stranded Copper Cable Single Core 16 mm, 0.6/1kV, PVC 85°C Insulation, Black Color, Length 2000 meter | SCC

Unarmored stranded copper cable (CU/PVC/PVC), single core, 16mm², 0.6/1 kV, PVC 85°C insulation, black color, length 2000 meter, produced by Saudi Cables Company, lightweight and easy to handle during installation without compromising its protection level.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size: 16 mm²
• Number of wires: 6
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 10.5 mm
• Weight: 225 kg/km
• Standard Length: 2000 meters
• Insulation Color: Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: EJB1-09A
