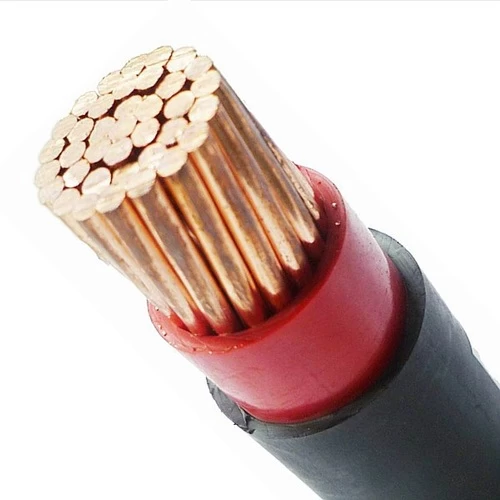

Stranded Copper Cable Single Core 150 mm, 0.6/1kV, PVC Insulation, Red Color, 1000 M | RESCAB

Unarmored stranded copper power cable (CU/PVC/PVC), single core,150mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC (polyvinyl chloride) layer forms excellent insulation to prevent leakage of electric current and It prevents harmful UV rays from damaging the cable.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 150 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.8 mm
• Nominal Sheath Thickness: 1.6 mm
• Approx Overall Diameter:22 mm
• Max DC Conductor Resistance at 20°C: 0.124 ohm/km
• Weight: 1625 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red
• Standard: IEC 60502-1
