Stranded Copper Cable Single Core 120mm, 0.6/1kV, PVC Insulated, Brown Color, Length 1000 M | RESCAB

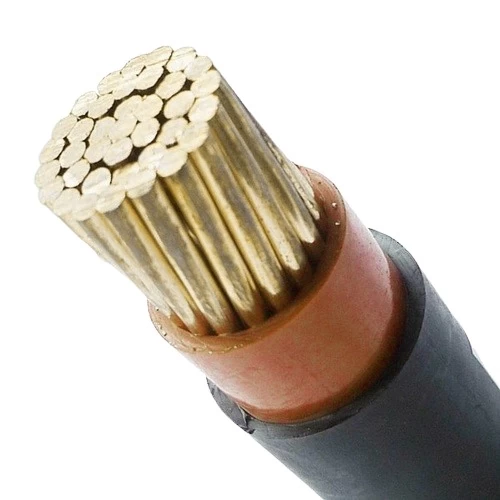

Stranded copper power cable (CU/PVC/PVC), 1C, 120mm2 size wire, 0.6/1 kV, produced by Red Sea Cables (RESCAB) Company, outer sheath adds extra protection and safeguards the cable from harmful sunlight exposure.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 120 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 1.5 mm
• Approx Overall Diameter: 20 mm
• Max DC Conductor Resistance at 20°C: 0.153 ohm/km
• Weight: 1335 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Brown
• Standard: BS 5467, 6346 Latest
