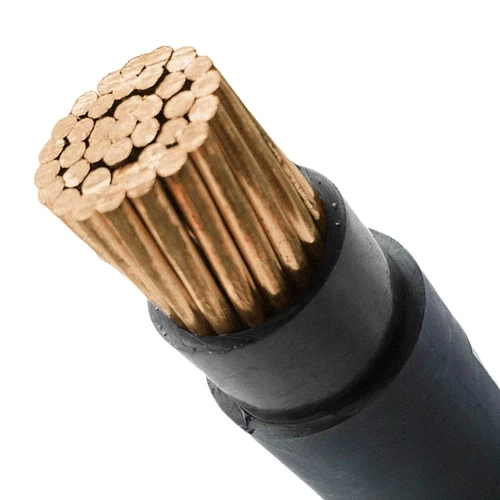

Stranded Copper Cable Single Core 120 mm, 0.6/1kV, PVC Insulation, Black Color, 1000 M Length | RESCAB

Unarmored stranded copper power cable (CU/PVC/PVC), single core,120mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC (polyvinyl chloride) layer forms excellent insulation and It prevents harmful UV rays from damaging the cable where there is no risk of mechanical damage.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 120 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 1.5 mm
• Approx Overall Diameter: 20 mm
• Max DC Conductor Resistance at 20°C: 0.153 ohm/km
• Weight: 1335 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
