Stranded Copper Cable Single Core 10 sq mm, 0.6/1kV, Solid, PVC Insulation, Blue Color, 2000 meter Length | Red Sea Cables

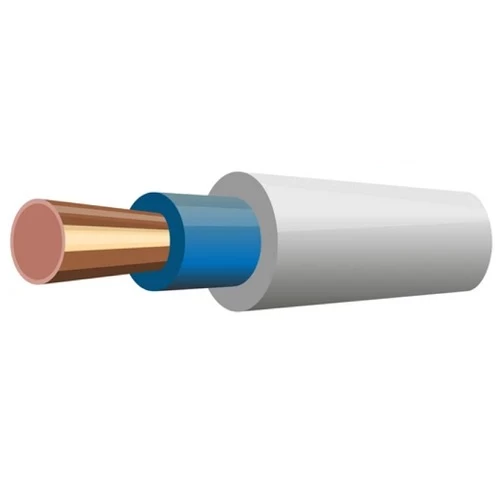

Solid Copper Cable (CU/PVC/PVC), 1 Core, 10 sq mm, 0.6/1kV, manufactured by RESCAB. It features an additional PVC protective layer, making it the ideal choice for electrical applications requiring high-quality insulation.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9 mm
• Max DC Conductor Resistance at 20°C: 1.83 ohm/km
• Weight: 155kg/km
• Standard Length: 2000 meters
• Phase Core Color: Blue
• Standard: BS 5467, 6346 Latest
