Stranded Copper Cable Single Core 10 mm2, 600/1000V, Solid PVC | Riyadh Cables

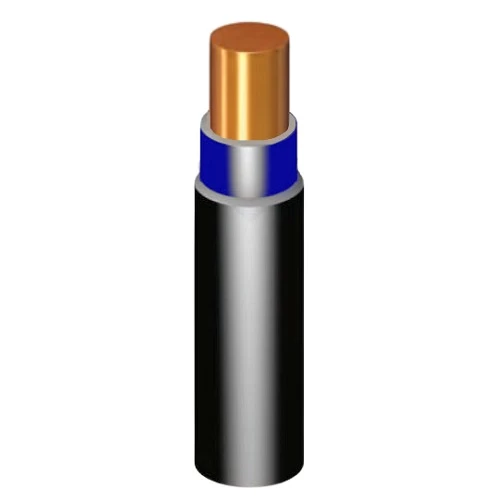

Solid single core PVC copper cable, 1×10 mm2, blue color, low voltage 600/1000V, used in power plugs, and home appliances, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Solid (re)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of Wires: 1
• Approx Conductor Diameter: 3.57 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9 mm
• Weight: 155 kg/km
• Cable Length: 1000 meters
• Phase Core Color: Blue
• Standard: IEC 60502-1
