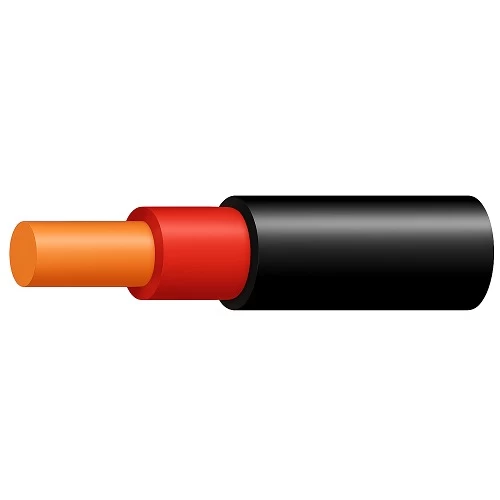

Stranded Copper Cable Single Core 10 mm, 0.6/1kV, Solid, PVC 85°C Insulated, Red Color, 1000 meter Length | SCC

Unarmored solid copper power cable (CU/PVC/PVC), single core, 10mm², low voltage 0.6/1kV, Specially designed for residential and office installations. Enhances indoor electrical safety. Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9.1 mm
• Weight: 155 kg/km
• Standard Length: 1000 meters
• Insulation Color: Red
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJB1-08A
