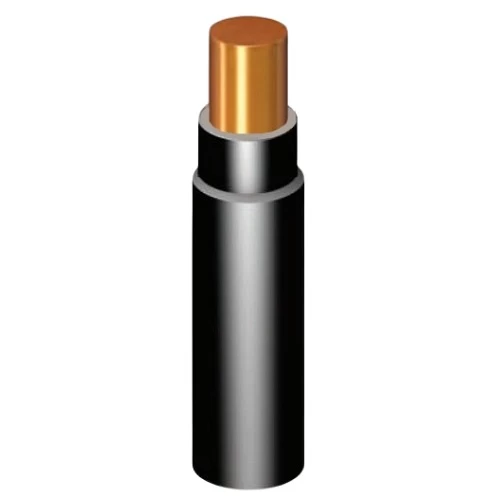

Stranded Copper Cable Single Core 10 mm, 0.6/1 kV, Riyadh Solid, PVC Insulated

Solid single core electrical copper cable (CU/PVC/PVC), according to standard (IEC 60502-1), features two insulated layers that provides protection for the cable from corrosion and external factors, cross-sectional area 1×10 mm2, black color, produced by Riyadh Cables Company.

• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Solid (re)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of Wires: 1
• Approx Conductor Diameter: 3.57 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9 mm
• Weight: 155 kg/km
• Cable Length: 1000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
