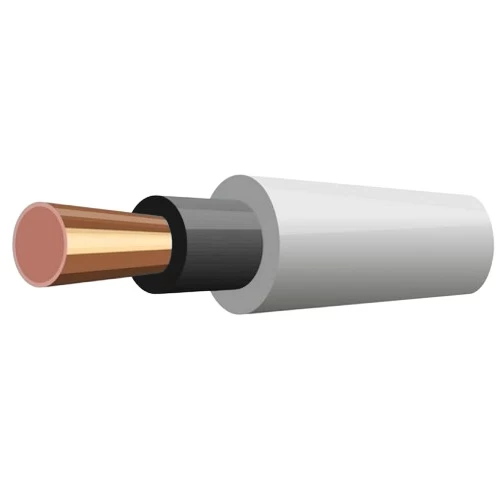

Stranded Copper Cable Single Core 1.5 sq mm, 0.6/1kV, Solid, PVC Insulation and Sheath, Black Color, Length 2000 meter | Red Sea Cables

Solid Copper Cable (CU/PVC/PVC), 1 Core, 1.5 sq mm, 0.6/1kV, manufactured by RESCAB. Offers excellent thermal insulation properties that protect against energy loss, with an outer sheath resistant to environmental factors like moisture and UV rays.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 6 mm
• Max DC Conductor Resistance at 20°C: 12.1 ohm/km
• Weight: 55 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Black
• Standard: IEC 60502-1
