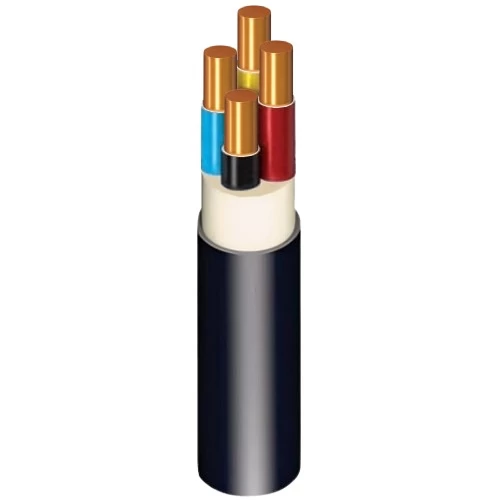

Stranded Copper Cable Four Core 6mm, 0.6/1kV, Solid, PVC Insulated | Riyadh Cables
4 core electrical cable (CU/PVC/PVC), solid copper conductor, Conductor diameter is 2.76mm, available in a variety of sizes and colors with the highest quality and best prices, produced by Riyadh Cables Company, Size 6 mm2.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage : 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 4 Core
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.76 mm
- Nominal Insulation Thickness: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 18 mm
- Weight: 550 kg/km
- Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
Contact Us
Related products

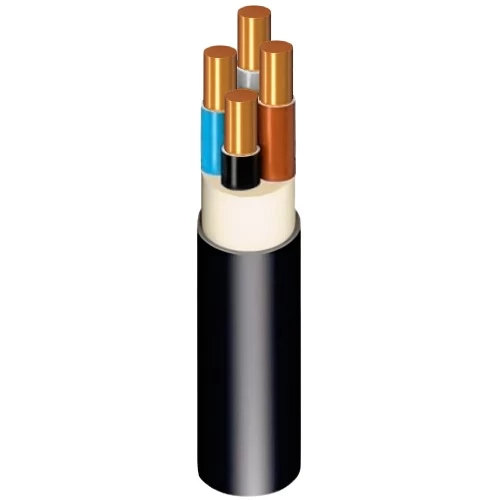

Stranded Copper Cable Four Core 6mm, 0.6/1kV, Solid, PVC Insulated | Riyadh Cables
