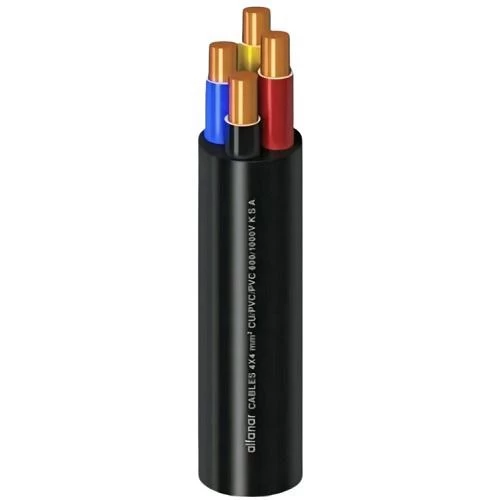

Stranded Copper Cable 4 Core 6mm2, 600/1000 volts, Solid, PVC Insulation | Alfanar

Cable 6 mm2 , 4 core, solid copper, 600/1000 volts, Insulated and sheathed with PVC, insulation color (red & yellow & blue & black), it is used for transferring electrical signals between different control units, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires: 1
• Wire Diameter: 2.76 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Overall Diameter: 15.1 mm
• Weight: 500 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red & Yellow & Blue & Black)
• Standard: IEC 60502-1
