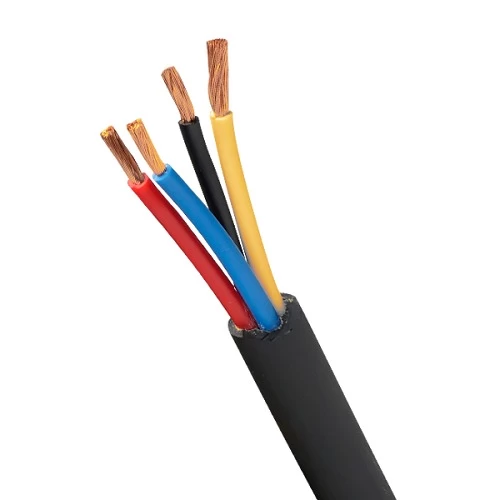

Stranded Copper Cable 4 Core 6 sq mm, 300/500V, PVC 85°C Insulation, Black Outer Cover, Length 50 meter | SCC

Stranded copper 4 core electric cable (CU/PVC/PVC), 6 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with black sheath, 50 meters. High efficiency with long-lasting durability. Manufactured by Saudi Cable Company.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 6mm2
• Number of Wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 15.5 mm
• Weight: 428 kg/km
• Length: 50 meter / Coil
• Insulation Color: (Red & Yellow & Blue & Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGH4-07H
