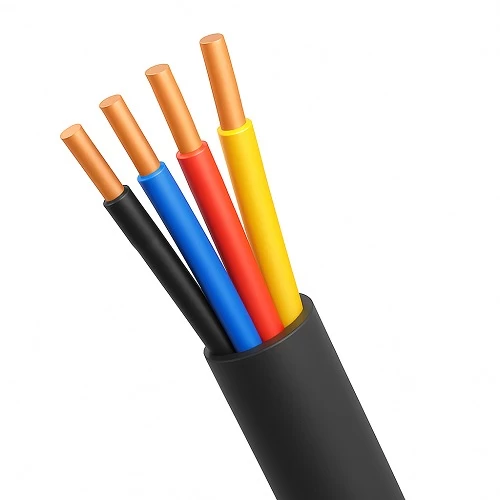

Stranded Copper Cable 4 Core 2.5mm, 0.6/1kV, Solid, Black Color, PVC 85°C Insulated, 1000 M | SCC

Unarmored solid copper power cable (CU/PVC/PVC), 4 cores, 2.5mm², voltage 0.6/1 kV, delivers high performance in electrical wiring for lighting and appliances, and is highly resistant to moisture and chemicals, Produced by Saudi Cables Company.

• Conductor: Solid Copper
• Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC 502
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 14.4 mm
• Weight: 300 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Yellow, Blue, Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: AJH4-05A
