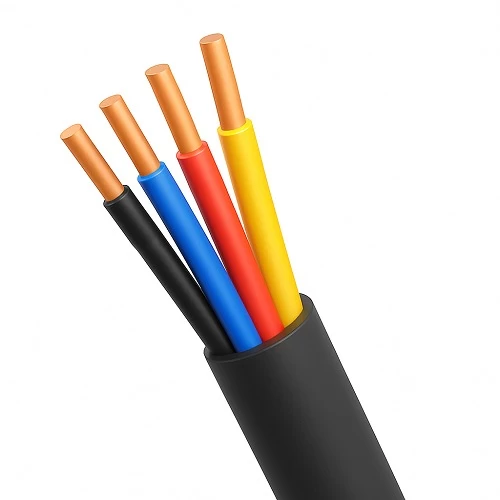

Stranded Copper Cable 4 Core 1mm, 300/500V, Solid, PVC 70°C Insulation, Black Color, Length 50 meter | SCC

Solid copper electrical cable (CU/PVC/PVC), 1 sq mm, 4 core, black color, PVC insulation rated at 70°C, 50-meter drum, resistant to moisture and environmental factors. Produced by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 1mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.6 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 9.4 mm
• Weight: 120 kg/km
• Length: 50 meter / Coil
• Insulation Color: (Red & Yellow & Blue & Black)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABH4-03H
