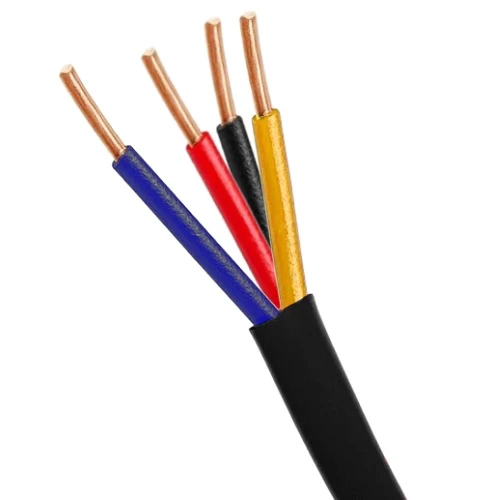

Stranded Copper Cable 4 Core 10mm, 0.6/1kV, CU/PVC/PVC Solid, Length 1000 meter | RESCAB

Solid Copper Electric Cable (CU/PVC/PVC), 4 Core, 10 sq mm, Low Voltage 0.6/1kV, produced by Red Sea Cables Company (RESCAB). Its protective outer layer, offers high resistance to mechanical impacts and direct sunlight, enhancing its durability and reliable performance.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 20 mm
• Max DC Conductor Resistance at 20°C: 1.83 ohm/km
• Weight: 820 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red, Yellow, Blue, Black
• Standard: IEC 60502-1
