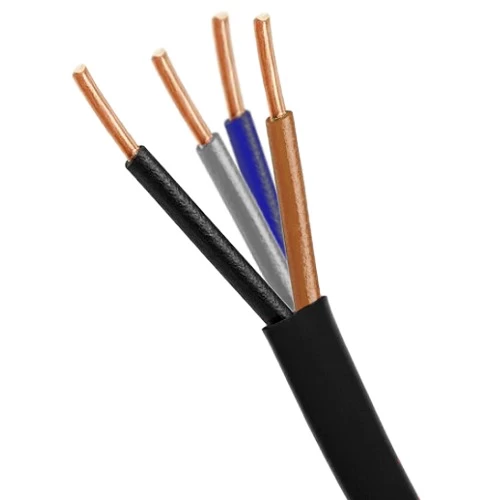

Stranded Copper Cable 4 Core 10mm, 0.6/1kV, CU/PVC/PVC Solid, 1000 meter | Red Sea Cables

Solid Copper Electric Cable (CU/PVC/PVC), 4 Core, 10 sq mm, Low Voltage 0.6/1kV, produced by Red Sea Cables Company (RESCAB). It features excellent PVC insulation that prevents current leakage and ensures reliable performance. The cable is available in various sizes and colors, offering superior quality at competitive prices.

• Conductor: Solid Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 20 mm
• Max DC Conductor Resistance at 20°C: 1.83 ohm/km
• Weight: 820 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue, Brown, Black, Grey
• Standard: BS 5467, 6346 Latest
