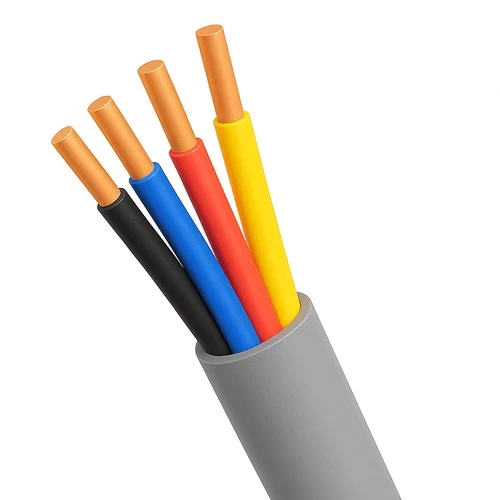

Stranded Copper Cable 4 Core 10 sq mm, 300/500V, Solid, PVC 70°C Insulation, Gray Sheath, 1000 meter Length | SCC

Solid copper 4 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with gray sheath, 1000 meters. Suitable for use in wet and dry locations. Manufactured by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 10mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 18.0 mm
• Weight: 638 kg/km
• Length: 1000 meter / Coil
• Insulation Color: (Red, Yellow, Blue, Black)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABH4-08H
