Stranded Copper Cable, 300/500 volts, 4×4 mm2 , Solid, PVC Insulated | Alfanar

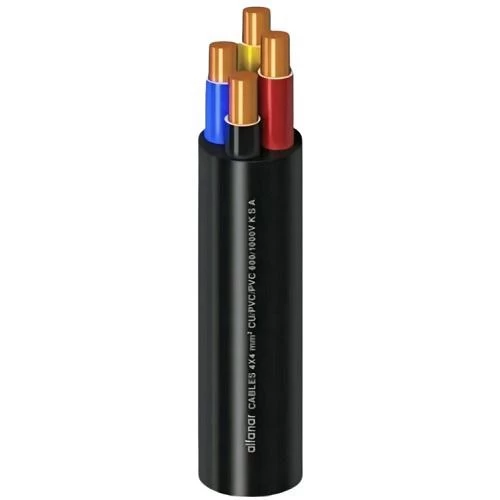

Electrical cable 4×4 mm2 300/500 volts, solid copper conductor, PVC Insulated, PVC sheath, the outer jacket  provides protection for the cable from corrosion and external factor, insulation color (red & yellow & blue & black), produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-U)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 1
• Wire Diameter: 2.25 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 12.9 mm
• Weight: 325 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red & Yellow & Blue & Black)
• Standard: IEC 60227-4
