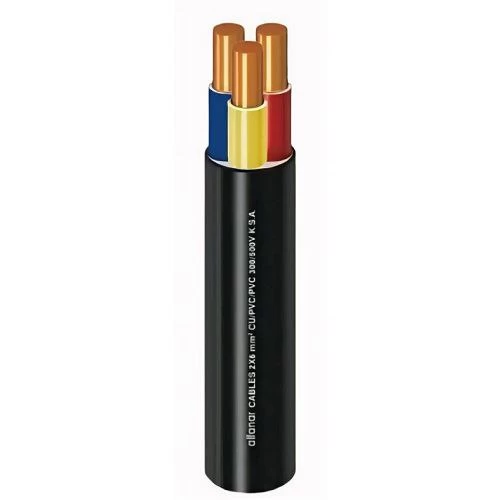

Stranded Copper Cable 3 Core 6sq mm, 300/500 Rated Voltage, Solid, Size, PVC Insulation | Alfanar

Solid electrical copper cable three core (CU/PVC/PVC), 6 mm2 cross-sectional area, 300/500V, phase core colors (red, yellow, blue), the insulation layer provides excellent electrical insulation, the outer jacket also provides protection for the cable from corrosion and external factors, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-U)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 6 mm2
• Number of Wires: 1
• Wire Diameter: 2.76 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 13 mm
• Weight: 345 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red & Yellow & Blue)
• Standard: IEC 60227-4
