Stranded Copper Cable 3 Core 4 mm, 0.6/1kV, Solid, PVC Insulated | Riyadh Cables

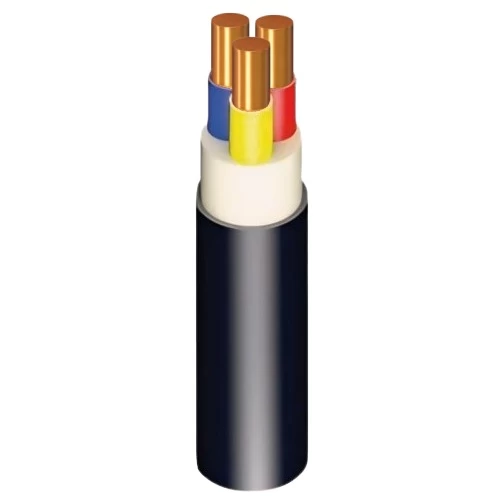

3 core solid copper cable, PVC insulated, size 3×4 mm2, it is used to conduct electrical current in various domestic, commercial and industrial applications, insulation colors (red & yellow & blue), produced by Riyadh Cables Company.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.25 mm
- Nominal Insulation Thickness: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 16 mm
- Weight: 375 kg/km
- Cable Length: 1000 meters
- Phase Core Colors: (Red, Yellow, Blue)
- Standard: IEC 60502-1
Contact Us
Related products
Stranded Copper Cable 3 Core 4 mm, 0.6/1kV, Solid, PVC Insulated | Riyadh Cables

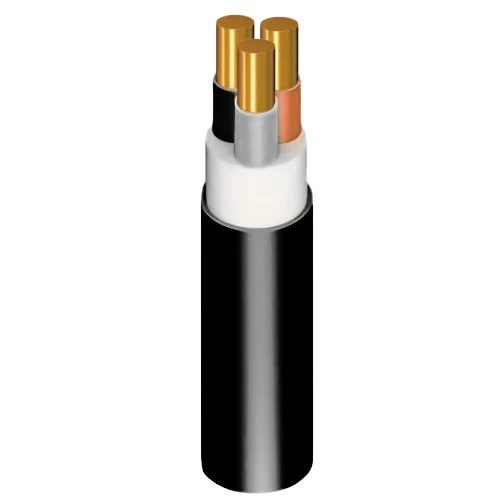

Three core electrical cable (CU/PVC/PVC), solid copper conductor, insulation colors (brown & black & gray), cross-sectional area 3×4 mm2, produced by Riyadh Cables Company, it is used to conduct electrical current in various domestic, commercial and industrial applications, Such as lighting equipment, central air conditioners, power plugs and home appliances.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.25 mm
- Nominal Insulation Thickness: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 16 mm
- Weight: 375 kg/km
- Cable Length: 1000 meters
- Phase Core Colors: (Brown, Black, Gray)
- Standard: IEC 60502-1
