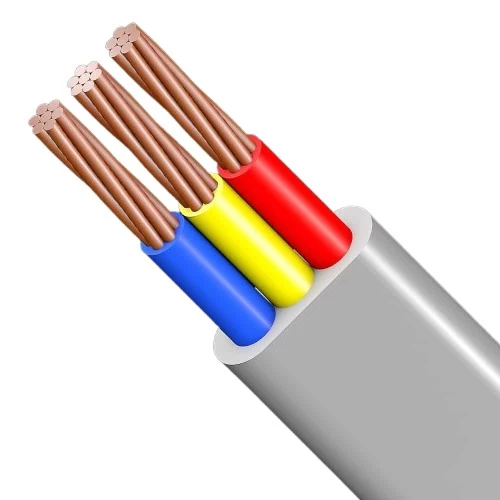

Stranded Copper Cable 3 Core 2.5mm2, 300/500 Rated Voltage, Flat, Solid PVC Insulated and Sheathed | Riyadh Cables

3 core solid electrical copper cable (CU/PVC/PVC), 2.5 mm2 cross-sectional area, 300/500V, the first layer provides excellent electrical insulation, insulation color is red, yellow and blue, produced by Riyadh Cables Company.

• Conductor: Copper
• Conductor Shape: Solid as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 2.5 mm
• Number of Wires: 1
• Insulation Thickness: 0.8 mm
• Sheath Thickness: 1 mm
• Overall Diameter or Dimensions: Lower Limit 5.2 x 11.5 mm / Upper Limit 6.2 x 13.5 mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 160 kg/km
• Insulation Color: (Red & Yellow & Blue)
• Sheath Color: Gray
• Standard: BS 6004
