Stranded Copper Cable 3 Core 2.5mm, 300/500V, Solid, PVC 85°C Insulation, Gray Color, 100 meter | Saudi Cable Company

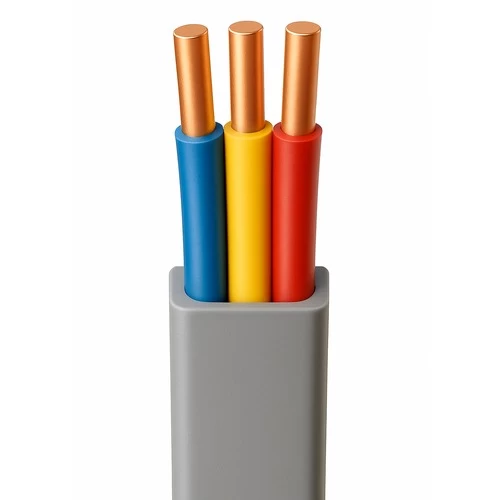

Solid copper flat cable, 3-core, 2.5mm² (CU/PVC/PVC), insulated up to 85°C with a grey PVC sheath that offers high protection against environmental factors. Ideal for industrial and commercial applications. Supplied in 100-meter rolls. Produced by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 2.5mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.0 mm
• Overall Diameter:  13.5×6.2 mm
• Weight: 137 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red & Yellow & Blue)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: AGF3-05H
