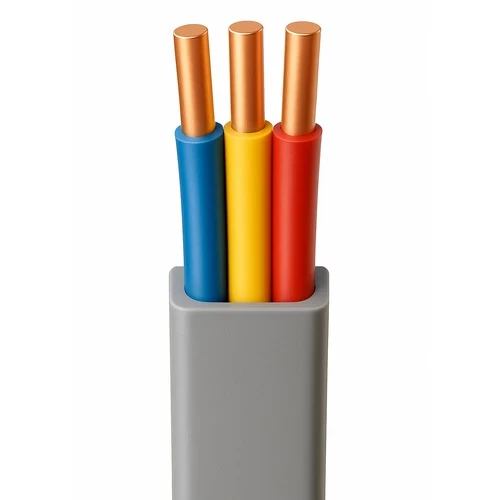

Stranded Copper Cable 3 Core 1.5mm, 300/500V, Solid, PVC 70°C Insulation, Gray Color, 50 M | Saudi Cable Company

Solid copper flat cable, 3-core, 1.5mm²(CU/PVC/PVC), insulated up to 70°C with grey PVC sheath, resistant to weather factors. Ideal for residential and commercial buildings. Supplied in 50-meter rolls. Produced by Saudi Cable Company.

• Conductor: Solid Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5mm2
• Number of Wires: 1
• Nominal Insulation Thickness: 0.7 mm
• Nominal Sheath Thickness: 0.9 mm
• Overall Diameter:  11.5×5.4 mm
• Weight:90 kg/km
• Length: 50 meter / Coil
• Insulation Color: (Red & Yellow & Blue)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: ABF2-04H
